Scrubber Systems
Wet scrubbers remove polluted fumes from industrial exhaust streams by passing contaminated air through a scrubbing media and filtration system.
Our self-contained units remove up to 99% of acid and alkaline fumes before release into the atmosphere. Manufactured horizontally or vertically in PVC, PP, or PE, our standard range includes 11 models handling airflow from 200 L/s to 5,000 L/s. Custom sizes are also available.
We can supply complete systems including ducting, piping, valves, and dosing equipment, and design each unit to suit your workspace and airflow requirements. Our scrubbers also feature removable observation windows for easy inspection and servicing.
Horizontal Scrubber System
Product Data
- Comes in 2 sizes to suite different air flow
- fabricated using PVC or PP or PE
- Recirculating pump with neutralising tank for maximum water efficency
- Viewable window and access panel
- Polyproplene Vane pad and Mist Eliminator pads for excellent filteration
- Catchment tray & sight glass to view water level
- Fully enclosed pump

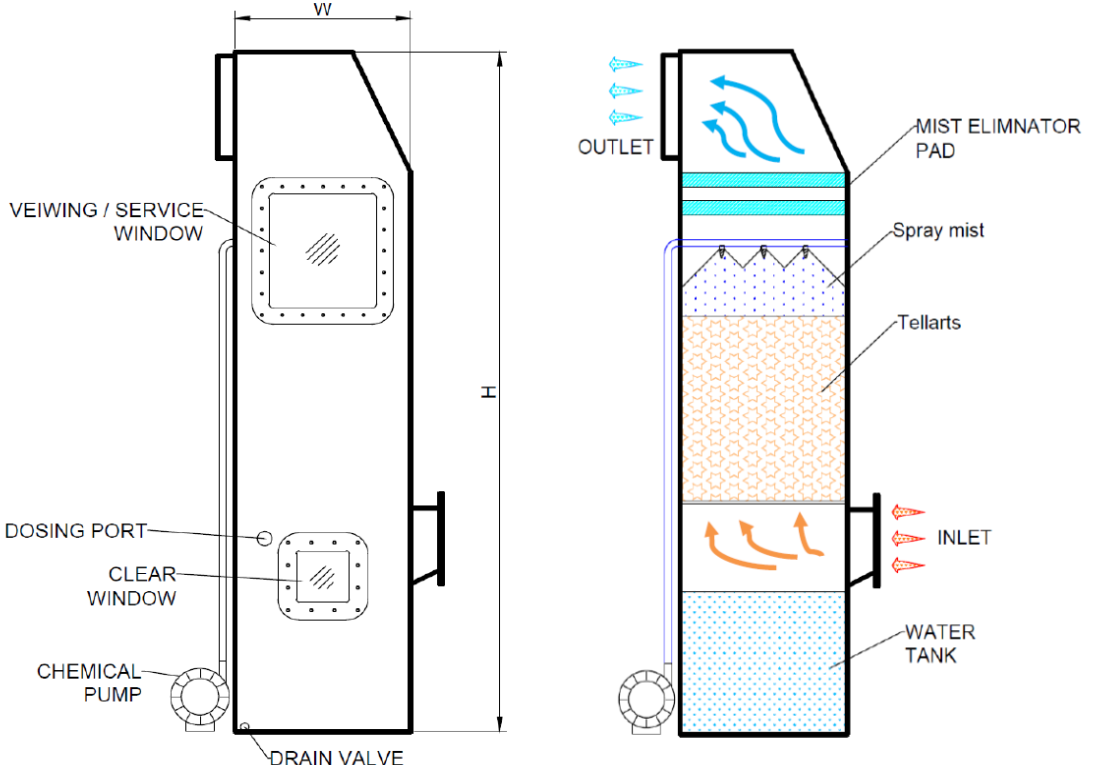

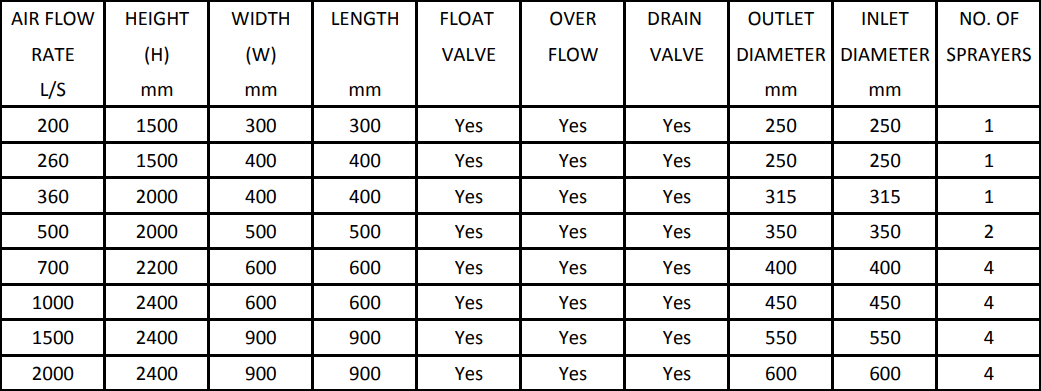

Vertical Scrubber System
Product Data
- Comes in 8 sizes to suite different airflow
- depending on the size, the scrubber is fabricated using PVC, PP & HDPE
- A recirculating pump with a neutralizing tank for maximum water efficiency
- Viewable Window and access panel
- Polypropylene Tellarts and Mist Eliminator pads for excellent filteration
